CSK Machinery has vast experience with stone machinery including CNC bridge saws, robot saws, stone polishing machines, stone miter machines, wire saws, cnc stone router machines, stone edge profile machines, dust extraction machines with water curtain and hand edge profile machines.

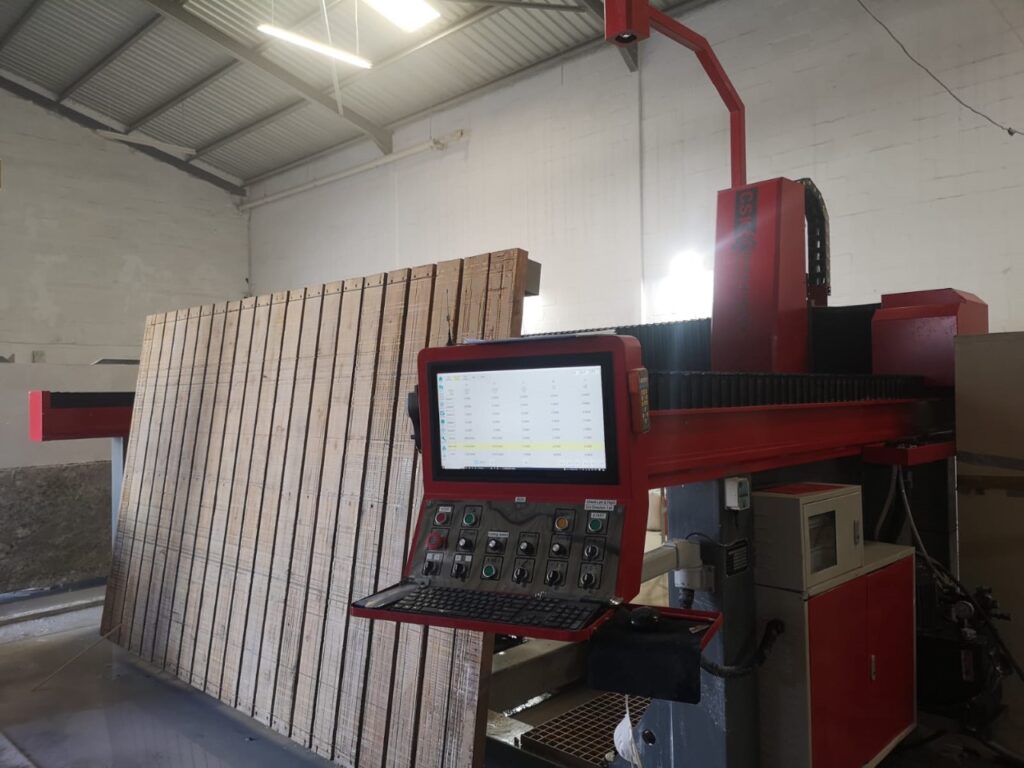

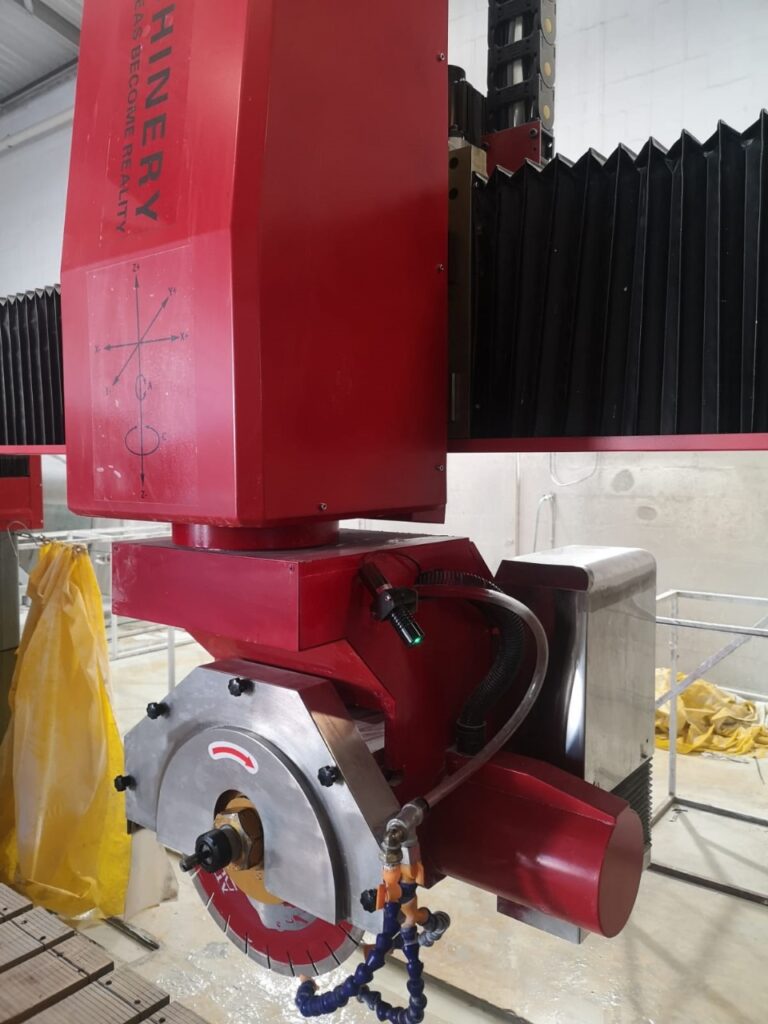

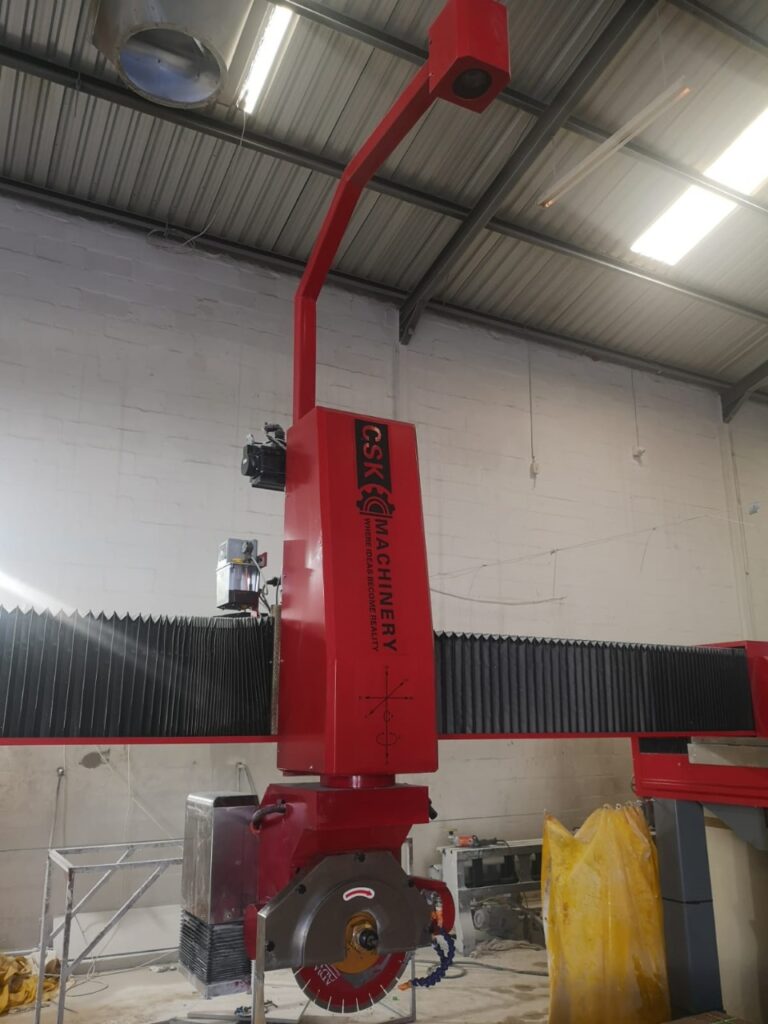

A CNC bridge saw which can cut from CAD drawings, from standard shapes on the machine software and also manually with a hand remote control
A CNC bridge saw which can cut from CAD drawings, from standard shapes on the machine drawn with the machine software and also do milling work with a finger bit
If you have a need for perfect miters every time, this is the machine for you. This 45 Miter Machine was designed for precision work with delicate materials like sintered porcelain.
If you have a need for perfect miters every time, this is the machine for you. This 45 Miter Machine was designed for precision work with delicate materials like sintered porcelain. Because this machine specializes in mitering and beveling it is in a different class when it comes to mitering! Even though the old edge profile type machines can handle quartz and natural stone tops, it is no match for this 45 Miter machine, especially when it comes to delicate materials. The 45 Miter Machine is very stable, very quick to set up and simple to operate with low risk of breakages.
This is probably one of the most useful machines in the stone Industry. It is used to machine edge profiles which are difficult or impossible to manufacture by hand. It is also used to do 45 miters edges and flat polishing of edges.
This is probably one of the most useful machines in the stone Industry. It is used to machine edge profiles which are difficult or impossible to manufacture by hand. It is also used to do 45 miters edges and flat polishing of edges.

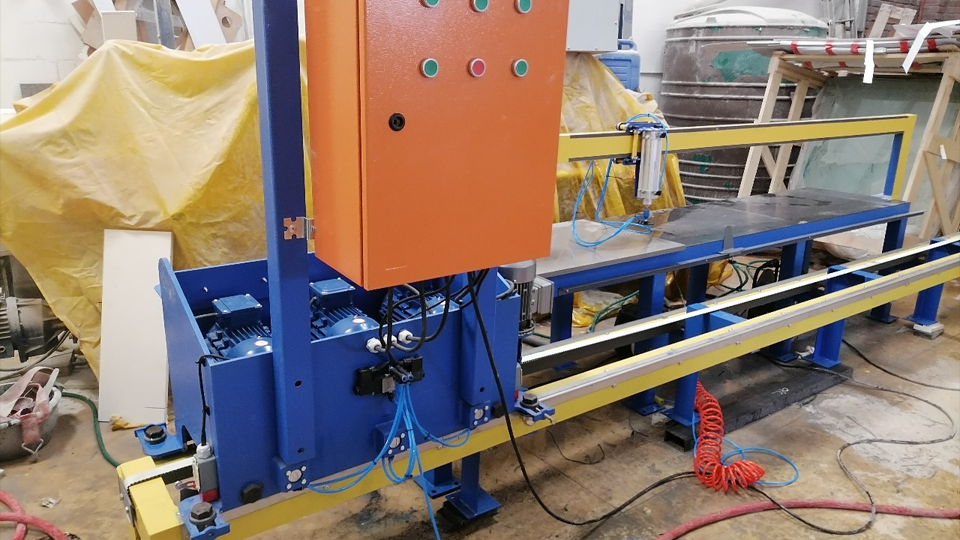

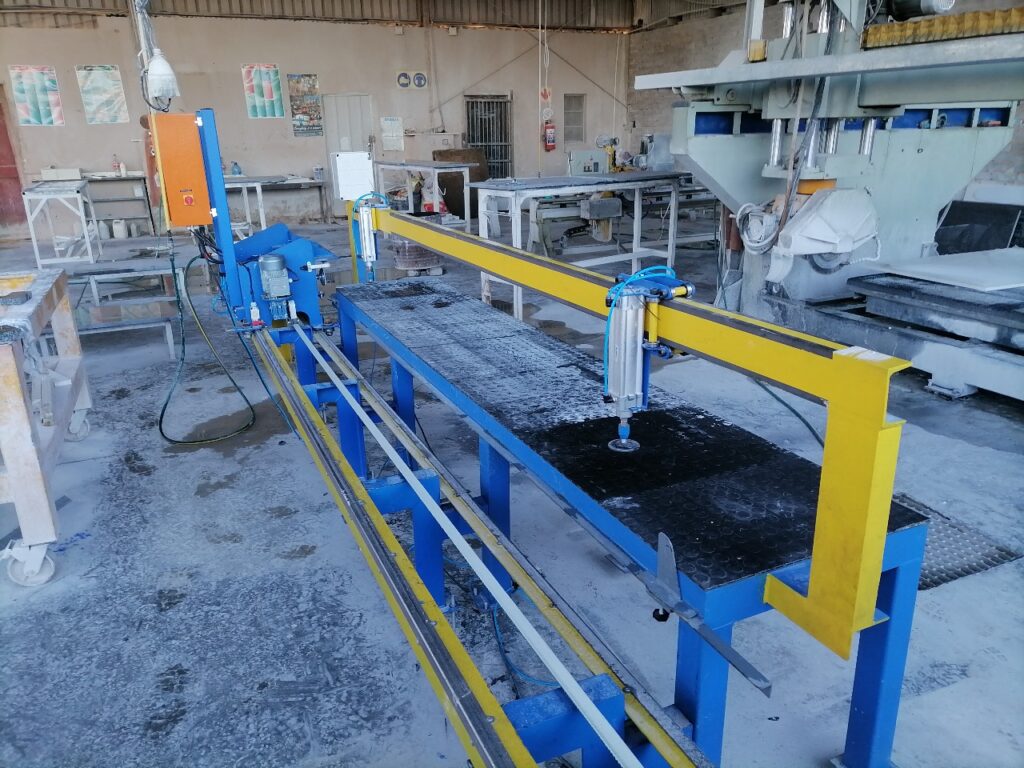

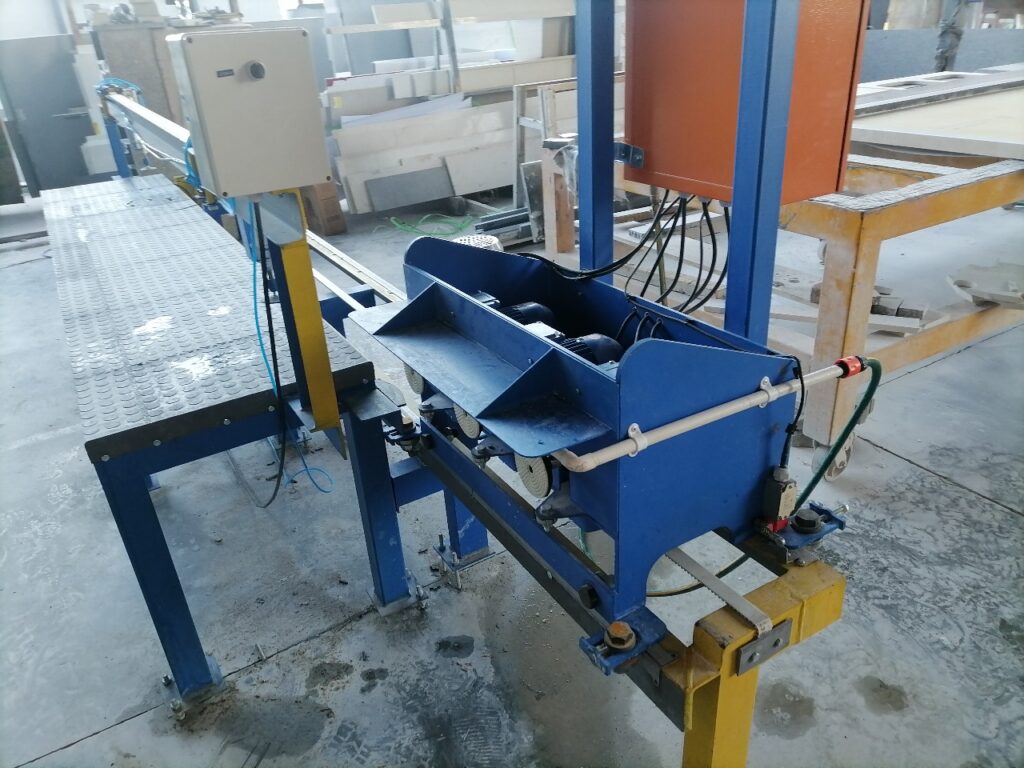

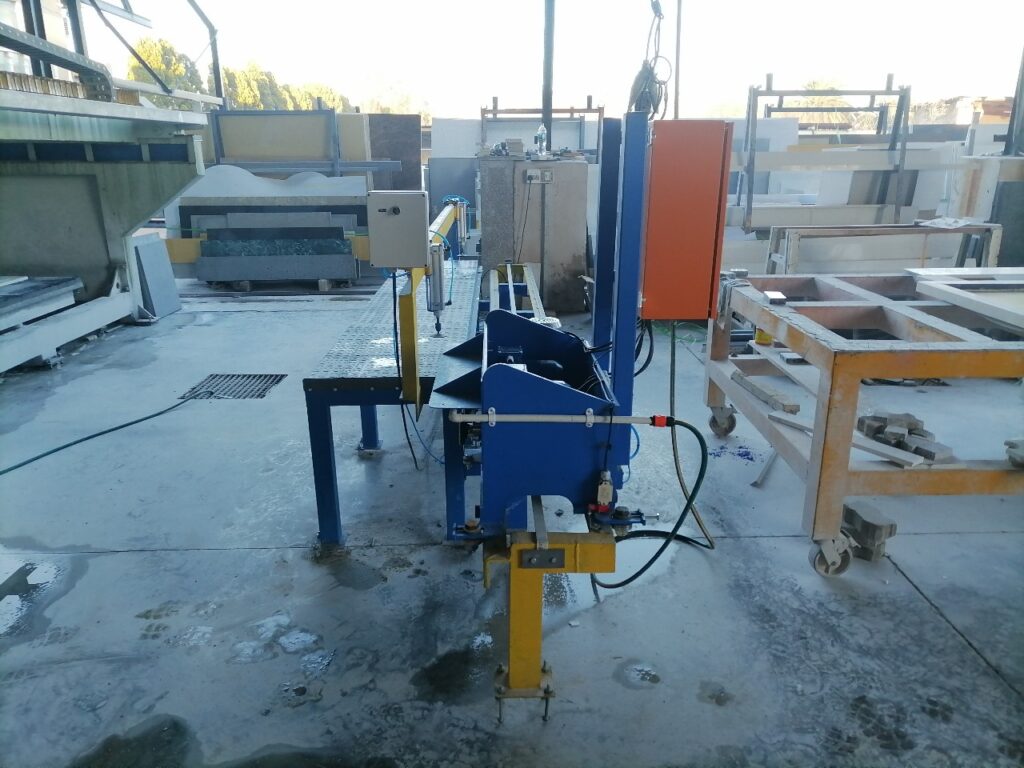

This is arguably the most useful machine in the stone industry, especially at this price! It polishes Flat edges very quickly and effectively.
This is arguably the most useful machine in the stone industry, especially at this price! It polished Flat edges very quickly and effectively.

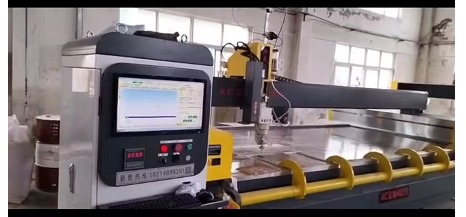

Waterjet cutting any material at any angle accurately! Hydraulic lifter for easy loading of heavy materials.
1. HONGWEI CUTTING SYSTEM 2. SERVO MOTORS 3. X axis no load running speed：0-6000 mm/min； 4. Y axis no load running speed: 0-6000 mm/min； 5. Z axis no load running speed:0-200 mm/min； 6. A axis ±106° ；0.1KW 7. C axis ±540°；0.2KW 8. Able to cut in all directions, angles and any plane curve. 9. The bed is reinforced to prevent the cutting head from vibrating when running at high speed. The machine runs smoothly, the cutting speed is fast and processing accuracy is high. 10. The screws and guides are supplied by famous brands, and the X,Y axis adopts unique oil bubble type screw guide lubrication method, coupled with effective waterproof and dustproof structure to ensure the processing accuracy of the CNC cutting platform and maximize the service life of the screw guide. 11. It has a unique sand valve design with a simple structure to ensure that the sand flow is smooth, repairs are easier and to prevent blockages caused by water. 12. Stainless steel shield, dustproof, waterproof, rustproof, anti-corrosion, easy to clean and the cutting platform remains bright as new all year round. 13. The Z-axis has automatic control for special workpieces and in cases where the upper surface of the workpiece in the Z-axis direction is curved, it can be set in the software to follow the curve automatically when cutting. 14. The machine is equipped with height measurement system and automatic air blowing system to clean up the dust on the workpiece surface. 15. Automatic cut-in and cut-out control, simulating processing trajectory and simulation operation. 16. Automatic calculation of cutting time, accurate budgeting of processing cost. 17. The limit of each axis is set in the software to protect the cutting head and avoid exceeding the travel range. 18. Selective machining, pause, automatic rewind, precise break point to continue, break point to go back and continue again. 19. Partial machining, repeat machining, etc. 20. Has the function of lifting the tool from part to part. 21. The cutting height of the tool head can be changed at any time during the machining process. 22. The system will automatically load control parameters, including automatic opening and closing valve sequence and automatic allocation of piercing time. 23. Automatic allocation of cutting speed, automatic handling of speed adjustment according to the size of the arc and sharp angle, as well as automatic adoption of valve control for brittle materials to reduce pressure piercing and transfer to high pressure cutting after piercing. 24. After cutting is complete the pressure is switched of automatically, the cutting head lifts automatically and the machines moves automatically to a pre-set point. |

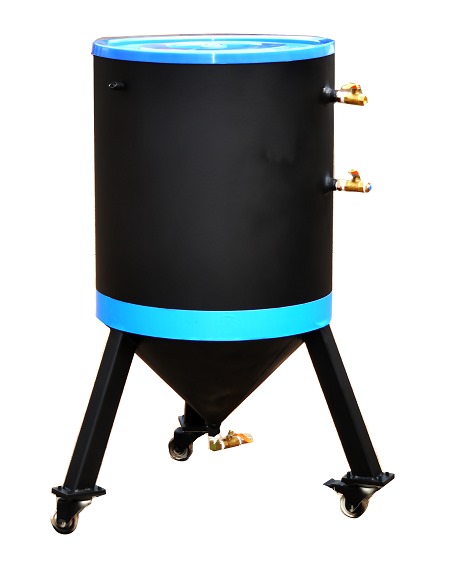

25. Automatic sand feeding system – Capacity: 100 liters – Working pressure: 0.2-0.3MPa – This system provides sand storage function for water cutting machine and transfers abrasives to the sand hopper automatically, which is easy to operate and can improve the automation of the machine and reduce the labor intensity of the operator. – 200 to 300 minutes of continuous cutting
|

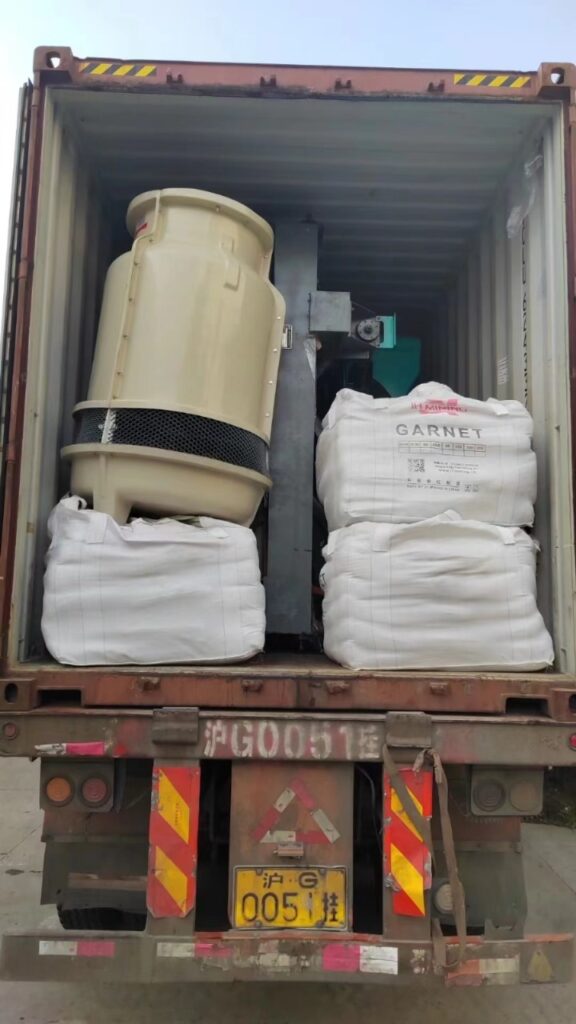

26. CoolingTowers – Diameter: 800mm – Height: 1500mm – Cooling volume: 3 m3 – In order to effectively control the oil volume, this economical and practical cooling tower is used for cooling. The cooling tower system can effectively control the temperature of the oil during the operation of the high-pressure system to ensure an extended service life of the sealing box and high-pressure parts, and at the same time reduces water waste. |
27. Manufacturing Time: +-4 weeks receipt of deposit. 28. Shipping time: +-4 weeks after manufacturing 29. Guarantee Period: One year for spare parts from the date that the machine is put into production. 30. Available Power Supply: 380V 50 Hz 31. Shipping Freight: Shipping and delivery included to Gauteng, Durban and Cape Town. 32. Documents Supplied: Foundation Drawing, Electric Drawing, English Video 33. Installation is included. One week’s food accommodation for one technician to be supplied by the customer. The Customer will supply equipment and assistance to offload and move the machine and parts to the required space in the factory.
|
